• Momentum II 100

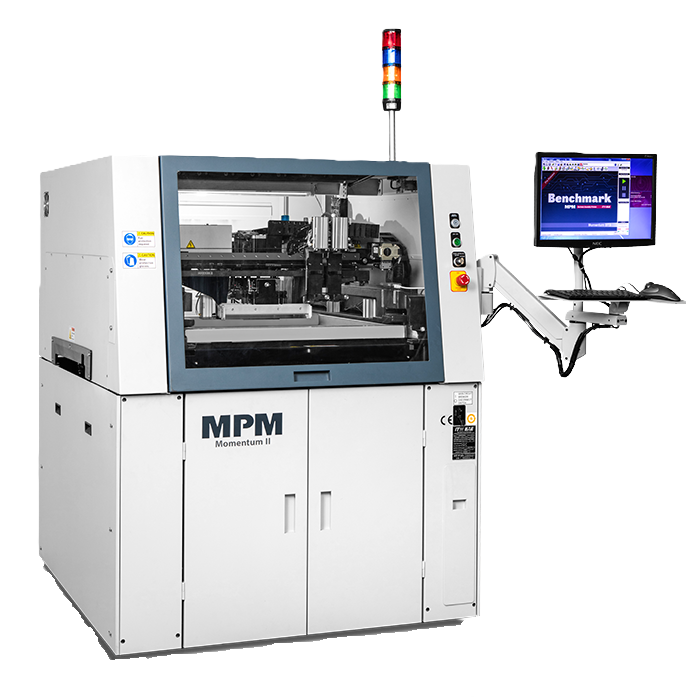

    Momentum II 100
    Specs & Key Features
    • Accuracy +/-11µ @ ≥ 2 Cpk , 6 sigma
    • Wet Print accuracy: +/- 17µ @ 6σ, Cpk ≥ 2
    • Win10 and Benchmark 6.0
    • Auto Paste Dispenser (option)
    • Paste temp and height monitoring (option)
    • EdgeLoc II clamping (option BTB only, N/A on 100)
    • EdgeLoc+ clamping (option BTB only, N/A on 100)
    • Adjustable Stencil Shelf (option)
    • Quick release squeegee
    Benefits & Value
    • Faster ROI
    • Robustness and durability
    • Higher yield and throughput
    • Up-time maximized
    • OpenApp for Industry 4.0 connectivity
    The Momentum® II 100 stencil printer is a hard-working, value-priced machine utilizing the robust, reliable Momentum series printer proven in top facilities around the world. Featuring a modest footprint that can grow with the user: add or retrofit innovative, patented features as throughput demands grow.

  • Momentum II Elite & HiE

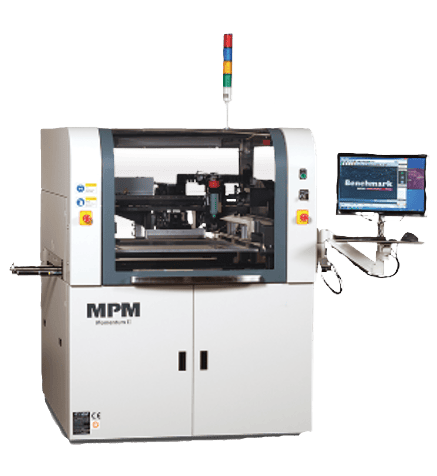

    Momentum II Elite
    Specs & Key Features
    • Accuracy +/-11um @>2 Cpk , 6 sigma
    • Core cycle time 6s Elite, 7.5s HiE
    • Camalot insides, Auto tooling, Enclosed Flow print head
    • New on Mom II:
    • Win10 and Benchmark 5.0
    • Paste temp and height monitoring
    • Edgeloc Plus and II
    • Adjustable stencil shelf
    • Quick release squeegee
    • Jar auto dispenser
    Benefits & Value
    • Robustness and durability
    • Higher yield and throughput
    • Up-time maximized
    • Differentiated features
    • OpenApp for Industry 4.0 connectivity
    • Versatility and flexibility to handle challenging applications

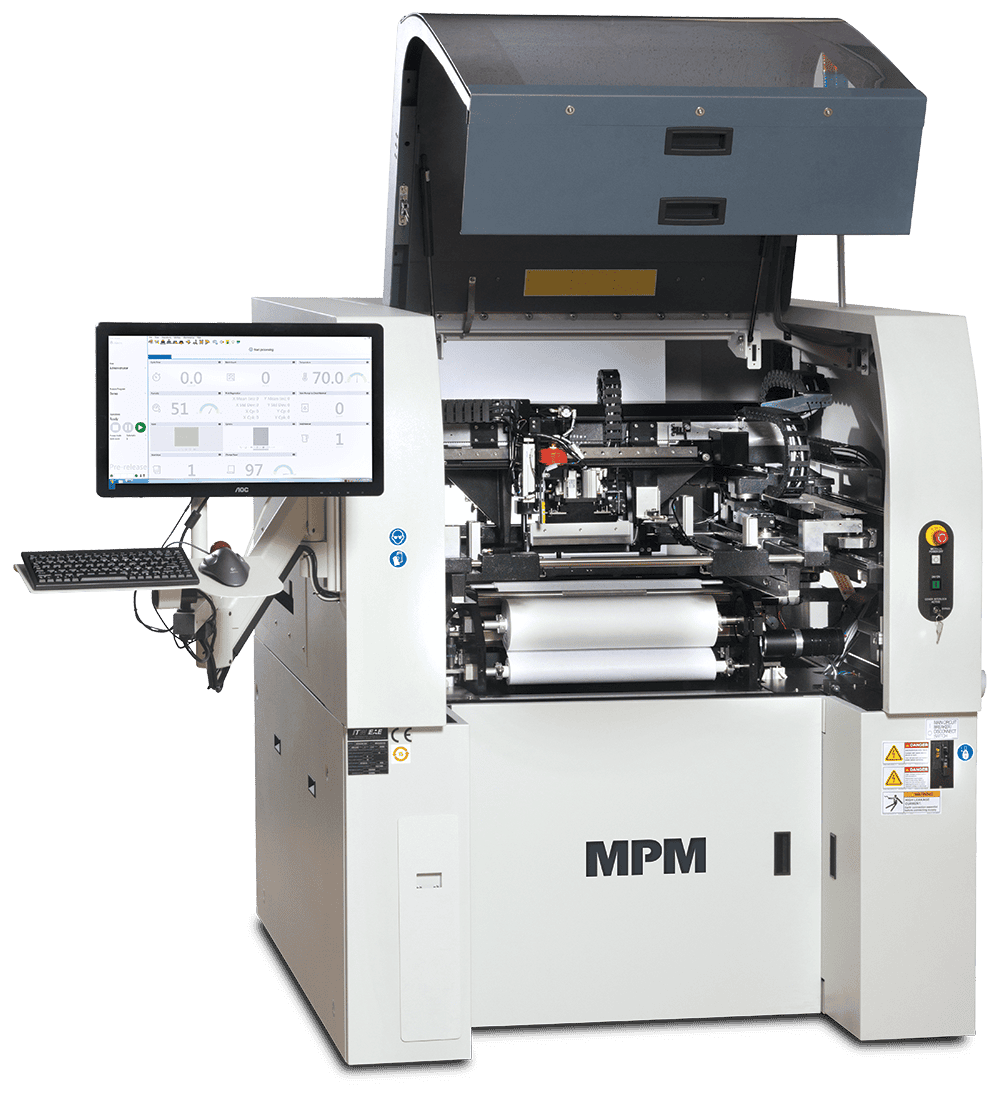

    The Momentum II Elite stencil printer is the top-performer of the Momentum series, boasting the highest throughput and shortest cycle times of all. Its vision system is driven by servos for speed, and it’s configured with a highly-efficient triple track rail system that saves cycle time by buffering PCBs inside the machine. A new board is indexed into the machine and positioned next to the center nest, readying to print, while other boards are being loaded and offloaded.

  • Edison II

    Edison II
    Specs & Key Features
    • Total System Alignment ±8 microns (±0.0003”) at 6 sigma,
    • Accuracy and Repeatability Cpk ≥ 2.0*
    • Qualification is performed using production environment process variables; print
    • speed, table lift and camera movement are included in the capability figure.
    • Wet Print Deposit ±15 microns (±0.0006”) at 6 sigma,
    • Accuracy and Repeatability Cpk ≥ 2.0*
    • Based upon actual wet printing with positional accuracy and repeatability verified
    • by a 3rd party measurement system.
    • Cycle Time
    • 300 15 seconds including print and wipe
    • 200 20 seconds including print and wipe
    The Edison printer is the industries’ most accurate printer (certified by third party) with +/- 15μ @ 6σ wet print repeatability. Total throughput is lightning fast due in part to the highly-efficient, parallel processing of the stencil shuttle system, stencil wiping, paste dispensing and vision alignment system. The MPM Edison™ stencil printer is ideally suited for the growing Automotive, Semiconductor and Smart Device manufacturing markets.

  • Edison II ACT

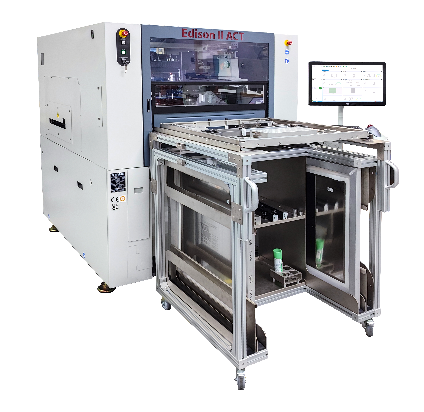

    Edison II ACT
    Edison II + Automated Changeover
    • Advanced Print Head
    • Automated Paste Changeover
    • Automated Stencil, Squeegee, and Tooling Changeover
    • Board Staging
    • EdgeLoc Board Clamping System
    • High Flow Venturi with Closed-loop
    • High Speed Vision Alignment with Ultra-slim Camera
    • Intueri and Industry 4.0 Integration
    • Paste Height Monitor
    • PrinTrack
    • SPI Print Optimizer
    • Unparalleled Throughput and Speed
    • Unprecendented Access and Back to Back (BTB) Configurable
    • Ultra-fast, High Efficiency Wiping System
    The MPM Edison II ACT (Automated Changeover Technology) was developed based on the proven MPM Edison platform, the industry's most accurate printer with advanced technology. With a built-in ±8 micron machine alignment, and ±15 micron wet print accuracy (≥2 Cpk @ 6 sigma, Edison's wet print accuracy. The Edison II ACT has a proven process capability greater than 2Cpk for 0201 metric components, an ideal solution to meet the increasing miniaturization and board component density challenges in Semiconductor, Automotive, Smart Devices and etc.
  • Prodigy
    Standard Features
    • Laser height sensor Auto vision alignment
    • Single needle cleaner Material low level sensor
    • XYZ calibration station Auto-width conveyor (single lane)
    • Light tower with alarm Pre-dispense and purge stations
    • Vision System Dual on axis lighting with CCD camera
    • Computer and OS Desktop PC with Microsoft Windows 10
    • Program Storage Local hard drive, USB ports and Ethernet
    • Industry Standards SMEMA, CE UKCA, Semi S2, S8 and S22
    Additional Options
    • Tilt and Rotate
    • IR Sensors
    • Syringe Cooler
    • MES Communications
    • Custom vision algorithms
    • Clean room compliance
    • SECS/GEM
    • Dynamic Dual Head
    • 2nd dispense head
    • Dual Mode Weight Scale
    • Large/heavy board capability
    • 2nd needle cleaner
    • Dot/Line inspection capability
    • UL compliance

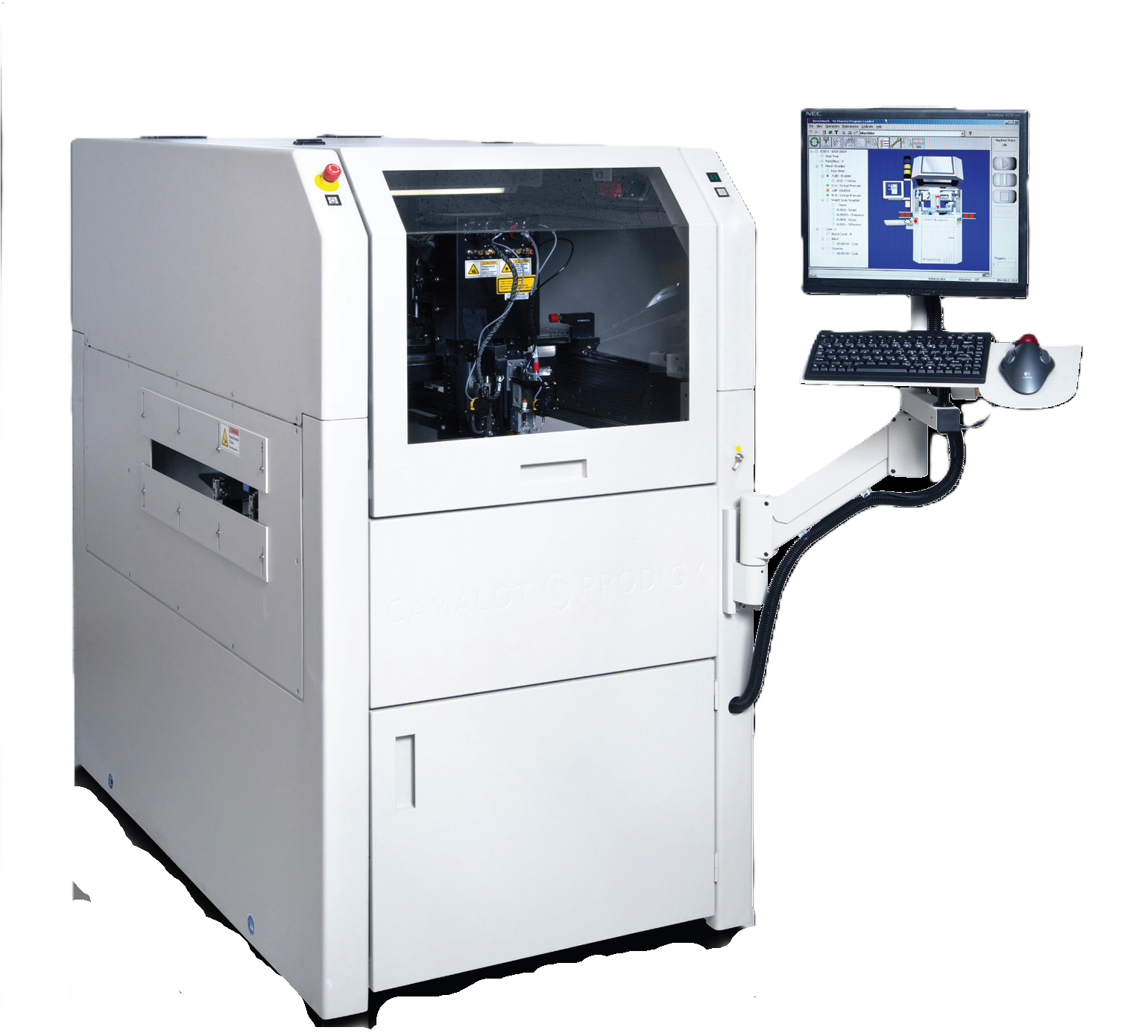

    The Camalot® dispenser is esigned and built to deliver extremely accurate dispensing at high speeds, exceptional frame stability and state of the art drive systems enable 1.5g’s of acceleration and XYZ positional repeatability of less than 10 microns. An innovative and rigid frame design combined with advanced linear drive architecture enables fast point to point moves, high accuracy and long-term repeatable performance. All pumps and options are field configurable allowing easy reconfiguration of the equipment if dispensing requirements change over time.

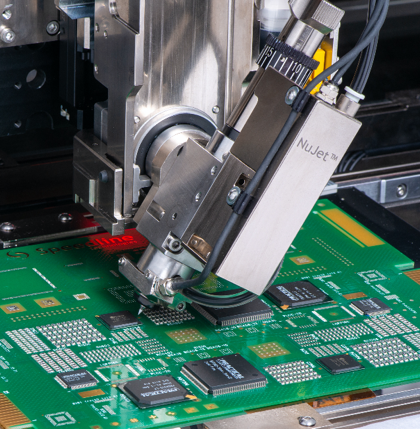

  • Advanced Tilt & Rotate dispense Head.

    Tilt & Rotate
    • Specs & Key Features
    • Rotate Angle, +/- 90 degrees
    • Tilt Angle, +/- 45 degrees
    • Drive System, Harmonic servo drives (both axis)
    • Pump Compatibility, NanoShot/NuJet (Auger consult factory)
    • Needle to Camera, Position Automatically calibrated
    • In Program Adjustment, Automatic
    • Programmable Positions, Unlimited
    • Programmable Increments, 0.1 degrees
    • Encoder Resolution, 0.01 degrees
    • Weight, 2.3 kg
    • Syringe Size, 10 - 55 cc (depending on mount location)
    • Benefits & Value
    • Improved capillary flow for Underfill applications
    • Reduced wet out area
    • Ability to dispense around tall components

    Patented technology that enables reduced wet-out areas, improved capillary fl ow for underfi ll and access for dispensing on side walls or around tall components. PCB designs are ever more challenging for dispensing with increased component densities, reduced material keep out zones, and a broad mix of component heights. State of the art rotary actuators provide a fast, high precision, zero backlash mechanism that is guaranteed to provide increased productivity and yields over alternatives. Packaged into the Prodigy system, proprietary motion and controls allow articulation of the dispense pump in sub-degree increments for both axes as many times as you need for total fl exibility.

  • Dynamic Dual head

    DDH
    • Specs & Benefits.
    • Voltage, 48 VDC
    • Drive system, DC Servo & ballscrew
    • Encoder resolution, < 1 micron
    • Individual axis repeatability, ± 1 micron
    • Pitch (pump dependant), 28 mm - 140 mm
    • Max Speed, 10 mm/s,
    • Platform compatibility Prodigy (Upgradeable)
    • Pump compatibility, All Prodigy pumps
    • Load capacity 1.6 kgs (3.5 lbs)
    • Independent, real time adjustment for both dispense pumps
    • • Dispense productivity increased by up to100%
    • • No yield loss due to second head inaccuracy
    • • Compatible with all dispense pumps
    • • Automatic setup and calibration
    Without DDH
    With DDH

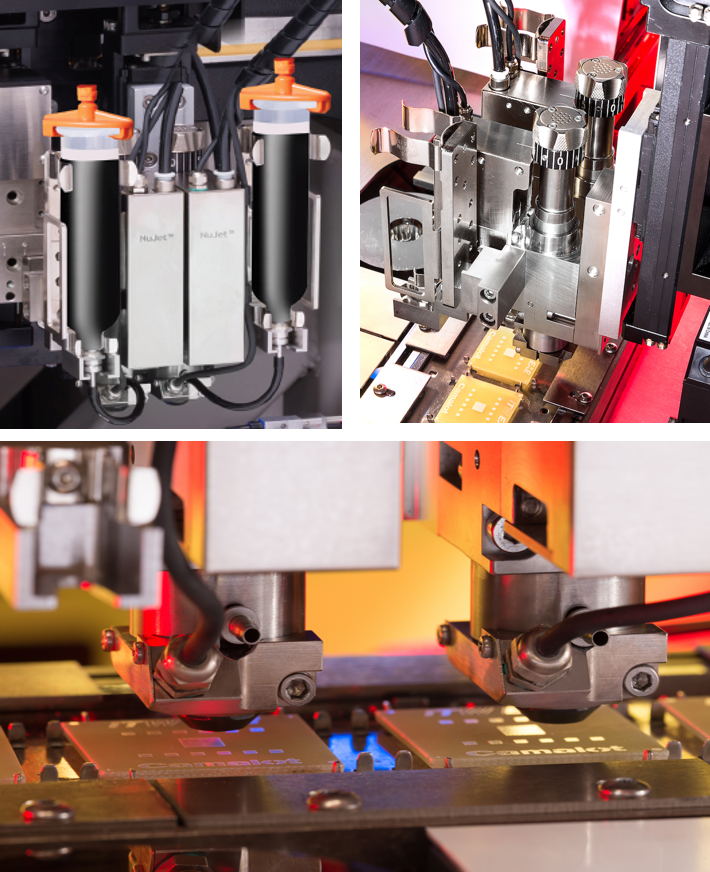

    Independent, real-time adjustment for both dispense pumps Incorporates a patented mini XY drive system attached to the second z-axis Only solution that can synchronously dispense with two pumps regardless of part to part rotation Dispense productivity increased up to 100% No yield loss due to second head inaccuracy Innovation driven specifically towards the needs of the Automotive, Smartphone and Semiconductor markets

  • Vectra ES3

    System Features - General.
    • Independent lift-up hoods
    • Glass windows in hoods
    • Interior lights
    • Removable front door
    • Easy access to pneumatic panel
    • Easy accessibility from front of machine

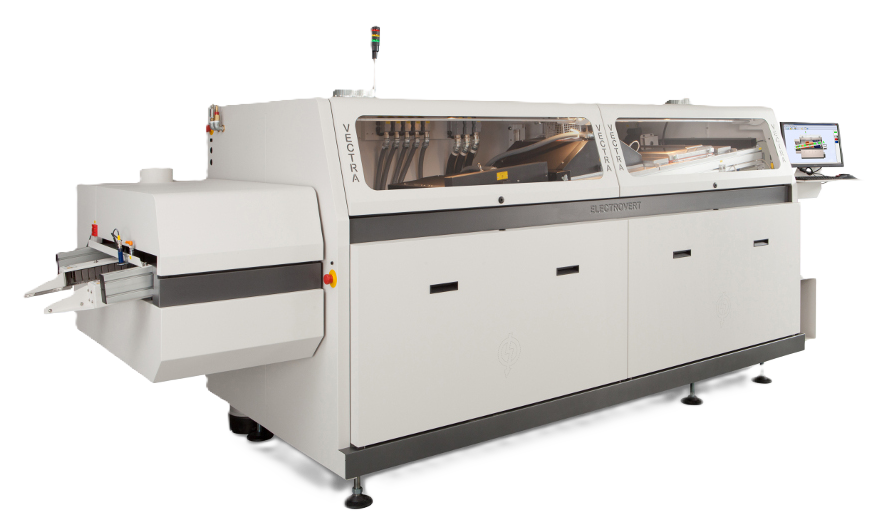

    Vectra ES3
    Vectra ES Base Package
    • Lead-free qualified and optimized
    • Finger type conveyor system with flexible V fingers
    • Wet finger cleaning system
    • ServoSpray reciprocating spray fluxer
    • 4’ (1.2M) of PID controlled calrod type IR preheat technology
    • Patented UltraFill™ 4.0 with FloLift wave technology
    • Recipe-driven solder pot height adjustment
    • Universal load & chain guard
    • Lifetime warranty on solder pot casting
    Specifications
    • Compliance: UL Listed or CE Compliant
    • Process Width: 2” - 18” (50 - 460 mm)
    • Preheat Length: Up to 6’ (1.8 M) bottom side, Up to 4’ (1.2 M) top side Exhaust Requirements: Two (2) 8” stacks each requiring 550 cfm
    • Air Requirements: 60 - 120 psig
    • Nitrogen Requirements: ½” FNPT inlet fitting with 60 -120 psig (optional)

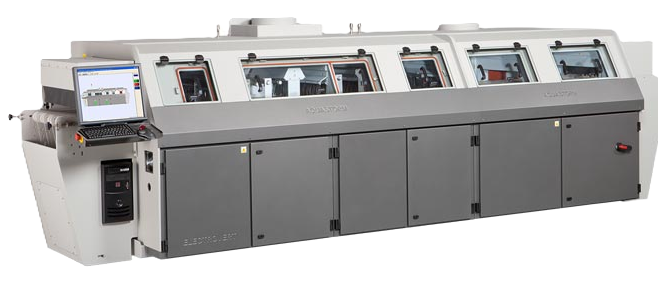

    The VectraES is designed to handle lead-free and difficult applications. As technology leaders, Electrovert incorporates a number of features to support difficult and challenging process environments. The cast iron solder pot and its components are resistant to the corrosive properties of lead-free solders, and are capable of withstanding temperatures up to 315ºC (600ºF). All stainless steel components that contact solder feature ElectroCoat™ corrosion-resistant surface conversion, and grade 1 (pure) titanium is available as an option.

  • Vectra Elite

    Medium to High Volume Production.

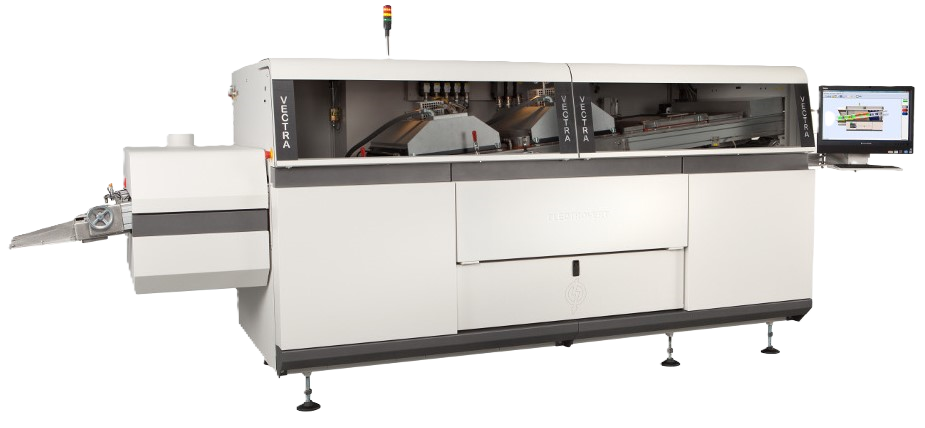

    Vectra Elite
    Key Features
    • Process width: 457 mm (18”) Standard, 508 mm (20”) Optional Preheat: IR Platen, IsoThermal Forced Convection, and Fast Response IR. Preheat Length: Up to 1.8m (6’) bottom , Up to 1.2m (4’) top
    • Solder Module: Cast iron solder pot
    • Lifetime warranty on solder pot casting
    • Flexible V fingers, Wet finger cleaning system
    • ServoSpray™ spray fluxing system
    • Vectaheat™ forced convection preheat technology
    • Patented UltraFill solder nozzle, with FloLift wave technology
    • Recipe-driven solder pot height adjustment
    • Removable decking system
    • Universal load & chain guard.
    The Electrovert® VectraElite™ wave soldering machine is ideal for medium-to-high mass board assemblies where fast changeover, process flexibility, and system reliability are required. The VectraElite combines innovative technology in an accessible, ergonomic platform with a zero-defect process at the lowest possible cost of ownership. VectraElite wave soldering systems have been designed to handle lead-free soldering utilizing a cast iron solder pot and its components are resistant to the corrosive nature of lead-free solders and are capable of withstanding temperatures of 315ºC (600ºF). All stainless steel components that come into contact with the solder are composed of ElectroCoat™ corrosion-resistant surface conversion as a standard feature, or grade 1 (pure) titanium as an option.

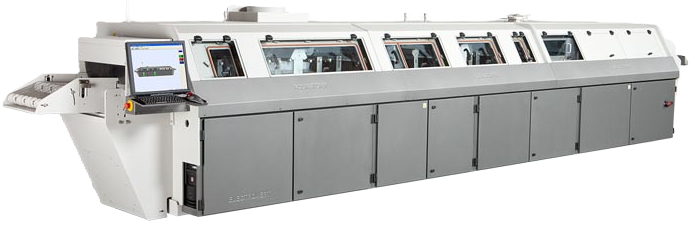

  • Electra

    Electra Available Options
    • High Performance ServoJet Spray Fluxing System
    • ServoSonic Ultrasonic Spray Fluxing System
    • Up to 8 Feet of Bottom and 6' (1.8M) Top Side Pre-heat
    • UltraFill Main Wave with FloLift Technology
    • UltraFill with Rotary Chip
    • DwellMax Plus, DwellFlex 4.0
    • Recipe Driven Solder Pot Height Adjustment (Lead Clearance)
    • N2 Quick Purge Feature for Full N2 Tunnel
    Electra Base Configuration
    · Lead free qualified and optimized · ServoSpray Spray Fluxing System · 4' (1.2 m) Bottom IR Platen or IsoThermal Convection Preheat· Recipe-Driven Air Atmosphere Dual Wave Technology · Recipe-Driven Solder Pot Height Adjustment (Lead Clearance) · Wet Finger Cleaning System · Interior Lighting · All-in-one Touchscreen Computer,· Data logging and Trending, Security, Process Notes, Help and Manuals · Recipe-Driven Motorized Conveyor Width Adjust. · Ethernet based I/O · Light Tower and 2 Additional Rear E-stops · 440-480 VAC, 3 Phase, 60 Hz · Installation and set-up · Lifetime warranty on solder pot casting to the original purchaser
    Electra

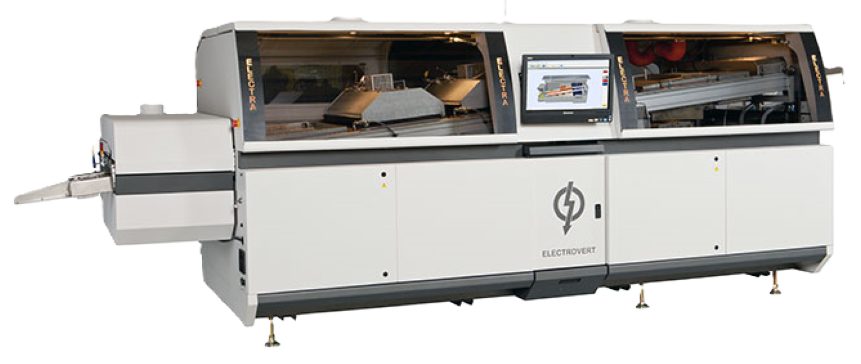

    The Electrovert® Electra™ wave soldering machine is an advanced, meticulously engineered wave soldering system designed for high-mass and high-volume manufacturers. Although intended for maximum throughput requirements, the Electra also offers maximum process flexibility and delivers world-class soldering results. Capable of 610 mm (24 in) process width with Short and Full N2 tunnel features and up to 2.4 meters (8 feet) of bottom side preheat and up to 1.8 meters (6 feet) of topside preheat.

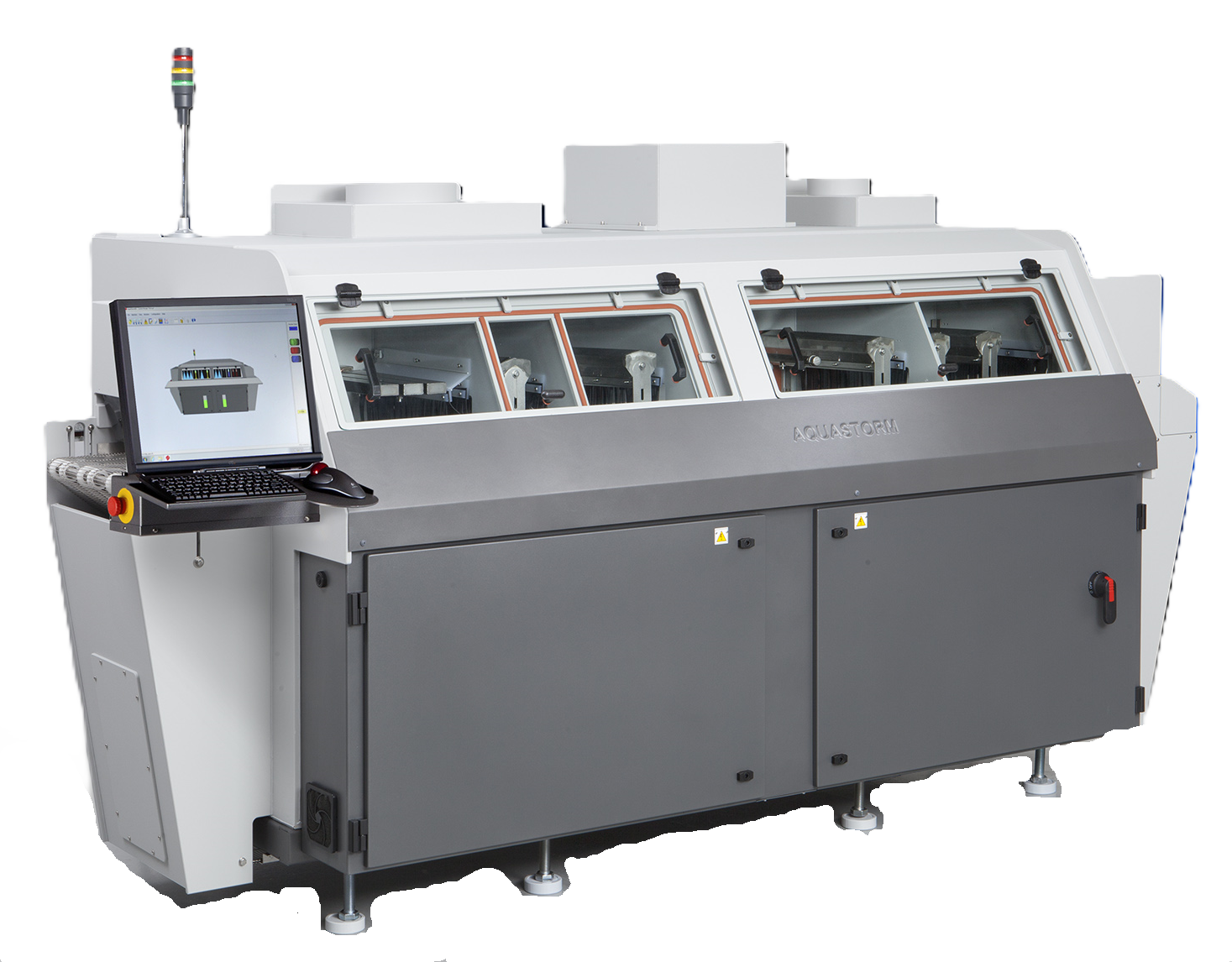

  • Aquastorm 200

    Medium to High Production Volume Water soluble & saponified aqueous applications
    AQ 200
    I’m a paragraph. Drag me to add paragraph to your block, write your own text and edit me.
    • 20 inch conveyor
    • Electronic pressure gauges
    • Light tower
    • Interior lighting
    • Quantity (4 E-stops
    • Auto standby photocell
    • 30” adjustable incline conveyor
    • 16” exit extension
    • Wash Hurricane Jet 10 hp pump
    • Rinse Hurricane Jet 10 hp pump
    • Password protection
    • Demisting filter
    • Split drain
    • Separate fills for wash and rinse
    • 10 hp blower dryer #1
    • ElectroAir knives
    • Blower fail detect
    • 10 hp blower dryer #2
    • ElectroAir knives
    • Blower fail detect
    • Return conveyor under machine

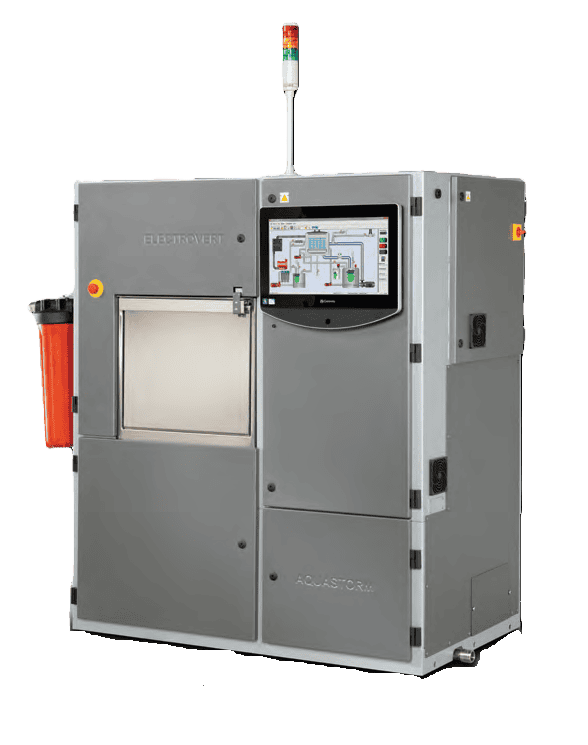

    The Electrovert Aquastorm 200 is a versatile, high-performance cleaning system designed to optimize the PCB cleaning process while minimizing overall cost. The Aquastorm features the most advanced cleaning technologies in an energy-efficient design. The Aquastorm 200, with its dual tank design, is ideally suited to RMA and no-clean de-flux applications that require chemistry, as well as removal of water-soluble organic acid flux.

  • Aquastorm 100

    Low to Medium Production Volume
    AQ100
    Standard Features
    • 20 inch conveyor
    • Electronic pressure gauges
    • 2 additional E-stops
    • Password protection
    • Wash Hurricane Jet with 10 hp pump
    • 10 hp blowers in Dryer #1 and Dryer #2
    • ElectroAir knives
    • Blower fail detection
    • Return conveyor path under machine
    The Electrovert Aquastorm 100 is a versatile, high performance cleaning system designed to optimize the PCB cleaning process while minimizing overall cost. The Aquastorm features the most advanced cleaning technologies in an energy-efficient design. The Aquastorm 100, in its compact size, offers the same process flexibility and capability as the Aquastorm 200. The Aquastorm 100 is also is ideally suited to RMA and no-clean de-flux applications that require chemistry, as well as removal of water-soluble organic acid flux.

  • Aquastorm 60

    AQ60
    Standard Features
    • Conveyor width 16” (406 mm)
    • On board PLC with touch screen controls
    • Recirculating wash with (3) double spray bar manifolds with v-jets nozzles (upper and lower) with 10 hp pump
    • Rinse section consisting of (1) single spray bar manifold with v-jet nozzles (upper and lower)
    • Hinged front tempered glass viewing windows and splash shields

    • Cascade from Rinse to Wash
    • Control valves located in wash pressure manifolds
    • Rear mounted pressure gauges for all wet sections
    • Build in demisting filer
    • Dryer section with (5) air knives (3 upper/2 lower) and a 10 hp centrifugal blower
    • Qty 2 front located e-stops
    • Pass word protection
    • High temp shut off switches in Wash
    • 440-480, 3 ph, 60 hz
    The Aquastorm 60 provides an in-line technology based solution that is capable of removing all flux residues and contaminants from lead and lead-free processes including rosin, no-clean, and water soluble type applications. The Aquastorm 60 is also used in surface cleaning, surface preparation, parts cleaning, and high reliability industrial cleaning environments. A full set of features and options are available to maximize cleaning performance and process flexibility..

  • Aquastorm 50

    AQ50
    Standard Features
    • Capable of removing flux residues from lead and lead-free soldering processes such as rosin, no clean, and water soluble type flux.
    • Flood wash and rinse technologies with rotating bars
    • Base machine equipped for use in DI water or chemistry applications
    • Short wash, rinse, and dry cycle times without shadowing effects as compared to other typical batch cleaners
    • Maximum board size of 15” x 20” (size dependant on process and application)
    • Capable of 180F Wash and Final Rinse temperatures
    • Closed loop wash
    • Chemical metering pump
    • Programmable Chemical Isolation between Wash and Rinse
    • Torrid Zone™ heated convection dryer
    Aquastorm 50 Available Options
    • Power basket technology with dedicated 7.5 hp pump
    • Closed loop rinse with on-board DI filtration
    • Stackable rack
    • Resistivity meter for Final Rinse
    • Intelligent Rinse Control with conductivity probe for Rinse discharge (controls number of cycles based on rinse conductivity)
    • Automated chemistry dosing system
    • Evaporator for limited to zero discharge applications
    • HEPA filter for convection dryer intake
    • Sump pump with filtered rinse to drain
    Today’s challenges for PCB manufacturers hinges on high density, increased complexity, and miniaturization. Manufacturers that currently clean with a batch-type cleaner are looking for a solution to increase cleaning capability without moving to an in-line cleaner. The Aquastorm 50 batch cleaner utilizes technologies that are common to the Aquastorm 100 and 200 in-line cleaners and offered in a batch footprint.

  • Centurion Reflow

    Key Standard Features
    • Quick exchange heaters and motor fan combination
    • Auto chain lubrication system
    • Board tracking system
    • Power management
    • CE compliance
    Key optional features
    • Key optional features
    • CATHOX patented flux management for standard
    • paste users and heavy duty paste users
    • Enhanced zone definition for large zone separation
    • Advanced controlled cooling
    • Dual lane with independent lane speed control
    • True N2/Air Switch
    • Easily Removeable Exhaust Box with Temperature and
    • Pressure Monitoring
    • Fast Cool Down (FCD) option
    • MCA (Machine Capability Analyses) test
    • System performance verification system
    • Traceability and connectivity options
    Centurion

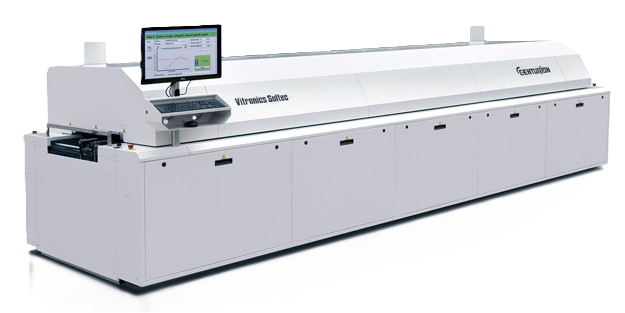

    The Centuriion reflow soldering oven is a forced-convection SMT reflow system with tight, closed-loop process control, built for today’s high-throughput PCB assembly environments. With the best heat transfer in the industry, the Centurion is able to run any profile at the lowest set point possible, which minimizes the thermal differences over the product and uses less energy. Superior process control ensures repeatability across the oven for consistently higher yields. A reliable and robust design ensures high uptime even with the toughest reflow requirements. Our patented CATHOX™ further reduces cost of ownership by reducing the maintenance needs through cutting-edge technology of flux treatment.

  • Delta X Wave Solder

    The Vitronics Soltec Delta X wave soldering machine has evolved from a long heritage of soldering machines with thousands in production worldwide. With technology driven features developed over generations the Delta X is a reliable, dependable and cost-efficient wave soldering machine.

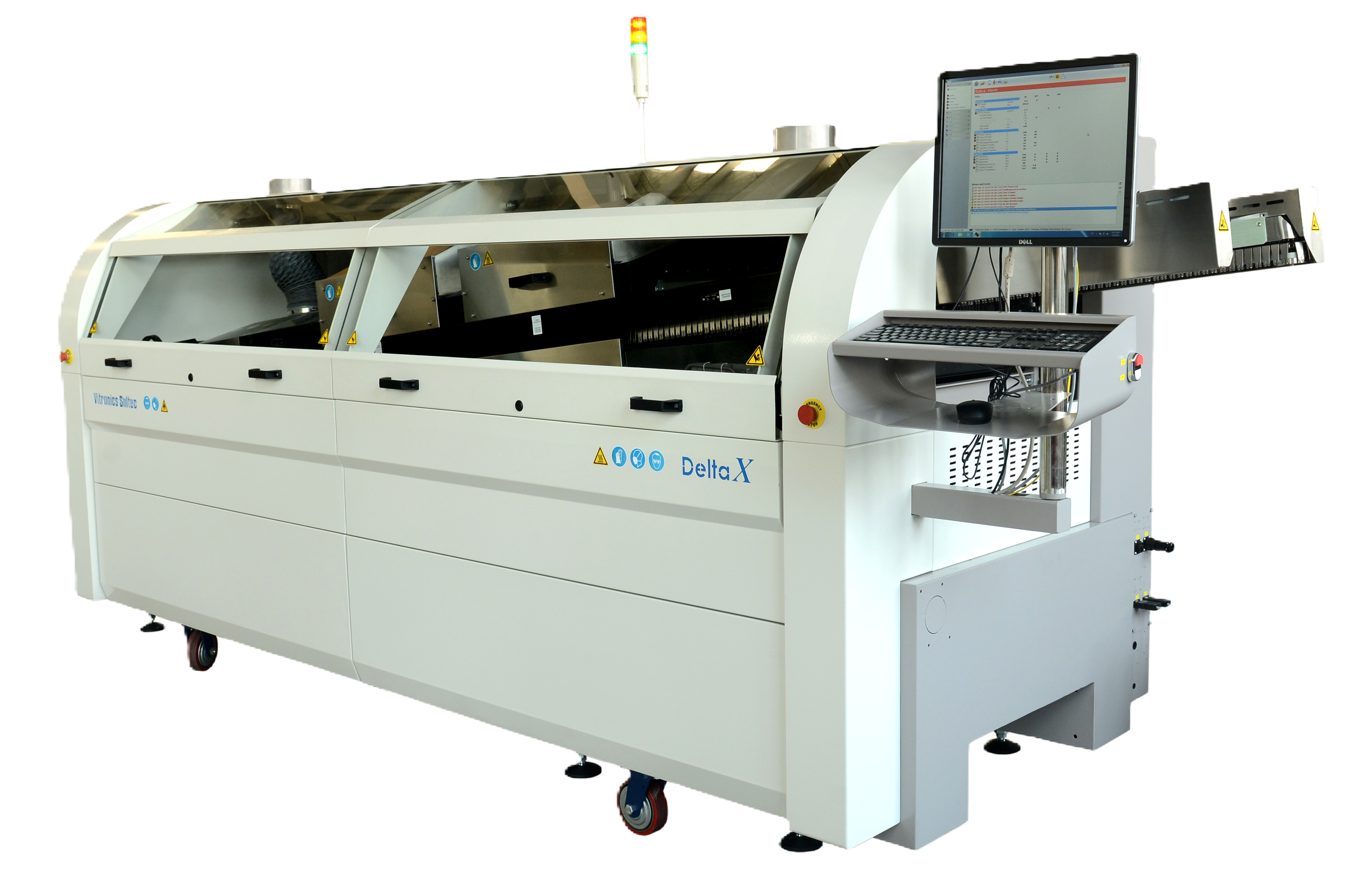

    Delta X
    Key Optional Features
    • Motorized conveyor width adjustment• Heavy duty PCB wire support• Finger crash detection system• Dual spray nozzle with recipe driven flux tank selection• Bottom and topside forced convection preheat• Recipe driven solder pot height control• NitroWave – nitrogen supply for solder waves• SmartWave (patented) – improves throughhole and SMT yields• Solder feeder for two solder bars
    Key Standard Features
    • Heavy duty titanium fingers• Manual conveyor angle adjustment between5 and 7 degrees• Finger cleaner• Recipe controlled single nozzle spray fluxer• Three PID controlled calrod preheat zones, totaling six feet• Titanium main wave• Unique dross management system, drastically reduces maintenance frequency
